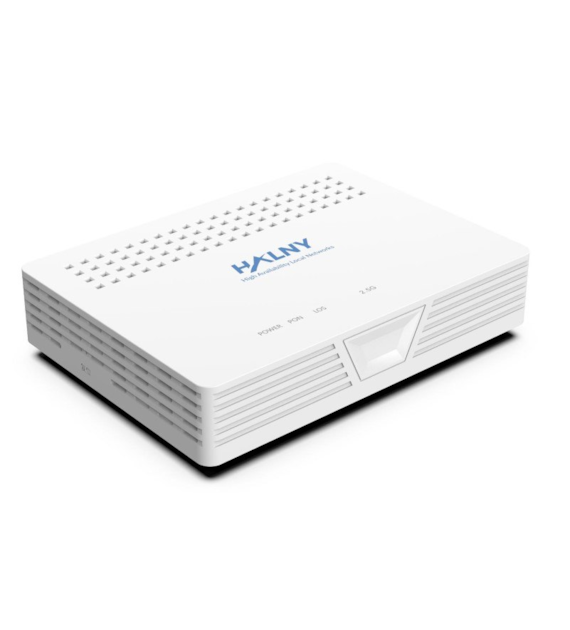

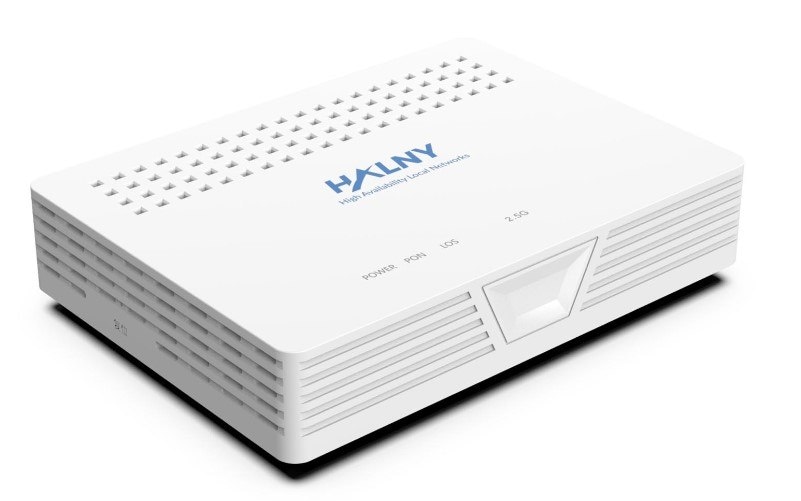

HALNY HLX-1TLV XGS-GPON ONT 1-PORT LAN 10Gbps, 1x POTS, SC/APC

HALNy HLX-1TLV – XGS-PON ONU subscriber terminal with 10 Gigabit Ethernet port and VoIP support

The HALNy HLX-1TLV is an ONT/ONU subscriber terminal designed for XGS-PON fiber-optic networks, enabling the delivery of broadband services with speeds of up to 10 Gb/s in both directions. The device uses a single optical fiber to connect the subscriber to the operator's network. It is suitable for FTTH installations in homes and businesses where high-speed Internet access and VoIP telephony are required.

The HLX-1TLV operates in SFU (Single Family Unit) mode, functioning as a network bridge with advanced VLAN support configured through OMCI. It features an XGS-PON SC/APC port, an RJ45 Ethernet port supporting speeds of 1, 2.5 and 10 Gb/s, and an RJ11 telephone port. Compliance with ITU-T standards and proven interoperability with OLT devices from various manufacturers make it easier to deploy the terminal in operator infrastructure.

Key features

• XGS-PON technology support with bandwidth of up to 9.953 Gb/s downstream and upstream.

• 10 Gb/s RJ45 Ethernet port with automatic speed detection.

• SFU mode – operates as a network bridge.

• Advanced VLAN support: Access, Transparent, Translation, QinQ, Selective QinQ and Hybrid.

• POTS RJ11 telephone port with VoIP and SIP protocol support.

• XGS-PON optical interface with an SC/APC connector.

• Management and configuration via OMCI.

• Compliant with ITU-T G.9807.1 and ITU-T G.988 standards.

• L2 networking features, including IGMP Snooping, bridge filtering and bandwidth limitation.

• Jumbo frame support up to 2K.

• Storage of two software versions: active and backup.

• Powered by an external 12 V DC power supply.

Technical specifications

• Model: HLX-1TLV

• Manufacturer: HALNy

• Device type: ONT/ONU subscriber terminal

• Access technology: XGS-PON

• Operating mode: SFU (Single Family Unit), network bridge

• WAN port: 1 × XGS-PON SC/APC, N1 class

• Downstream bandwidth: 9.953 Gb/s

• Upstream bandwidth: 9.953 Gb/s

• XGS-PON receive power: -29 to -10 dBm

• XGS-PON transmit power: 4 to 9 dBm

• LAN ports: 1 × RJ45 1000/2500/10000 Base-T

• Supported Ethernet speeds: 1 Gb/s, 2.5 Gb/s, 10 Gb/s

• LAN port features: automatic speed detection, Auto MDI/MDI-X

• Telephone port: 1 × POTS RJ11

• VoIP support: SIP, DTMF, dial plan

• VLAN support: Access, Transparent, Translation, QinQ, Selective QinQ, Hybrid

• Management: OMCI, REST API / JSON

• L2 features: 802.1D bridge, IGMP Snooping v1/v2/v3, bridge filtering, bandwidth limitation

• Additional XGS-PON features: AES, FEC, DBA, Dying Gasp

• Processor: dual-core 1 GHz

• Flash memory: 128 MB

• RAM: 1024 MB

• LED indicators: POWER, PON, LOS, LAN1, TEL

• Buttons: ON/OFF, Reset

• Power supply: DC 12 V / 1.5 A, via external AC/DC power adapter

• Operating temperature: 0°C to 45°C

• Storage temperature: -20°C to 70°C
