Grandway FHP12A Mini miernik mocy 850/1300/1310/1490/1550/1625nm złącza SC/PC, FC/PC, czułość-70dBm do +10dBm

Prices

Net retail price
105,00 PLN /szt.

Gross retail price
129,15 PLN /szt.
This language version of the website is still under construction. If you want to know more, please contact us.
Vat
23%
Zapłać 30 dni później z   Dowiedz się więcej
Data
Symbol
GRANDWAY-FHP12A
Barcode
0000008824
Weight
0.13kg
Basic unit
szt.
Manufacturer name
Grandway
Inventory status

Description

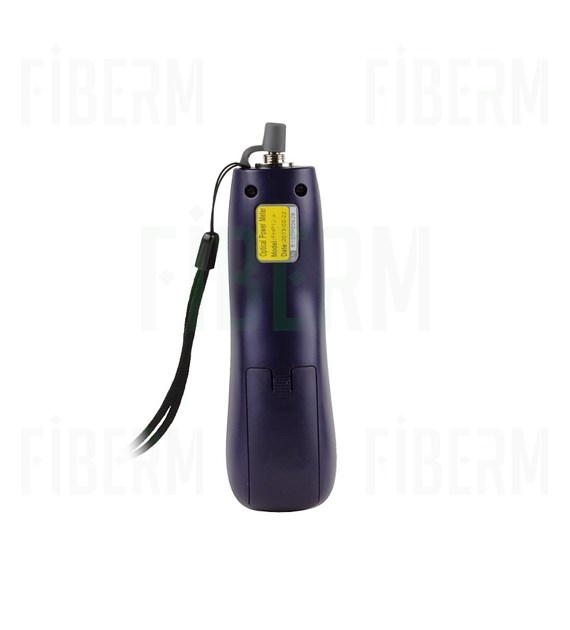

Mini Optical Power Meter Grandway FHP12A

The Grandway FHP12A is a compact, lightweight, and precise optical power meter designed for FTTH network installers. It performs exceptionally well during routine service and measurement tasks in G-PON networks, offering both reliability and ease of use.

Equipped with a universal 2.5 mm connector, it is compatible with widely used connectors including SC, FC, ST, and E2000. The InGaAs detector and high sensitivity ensure accurate readings across a wide range of wavelengths and power levels.


Applications:

  • Measuring optical signal levels from the OLT at splitter points or subscriber outlets in G-PON networks

  • Identifying active fiber lines before OTDR testing (to protect the OTDR from damage)

  • Measuring optical power during data transmission via media converters


Key Features:

  • Wavelength range: 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm

  • Measurement range: +10 dBm to -70 dBm (at 1550 nm)

  • Detector type: InGaAs

  • Connector type: Universal 2.5 mm (SC/PC, ST, FC/PC)

  • Measurement accuracy: ±0.35 dB ±1 nW

  • Resolution: 0.01 dB

  • Measurement modes: Absolute and relative power

  • Backlit display for convenient use in low-light conditions

  • Power supply: 2x AAA batteries – up to 80 hours of operation

  • Dimensions: 120 × 33 × 30 mm

  • Weight: 70 g

  • Operating temperature range: -10°C to +50°C

  • Storage temperature range: -20°C to +70°C

  • Included in the package: Protective carrying case



Specyfikacja
Product group:
Średni czas dostawy:
