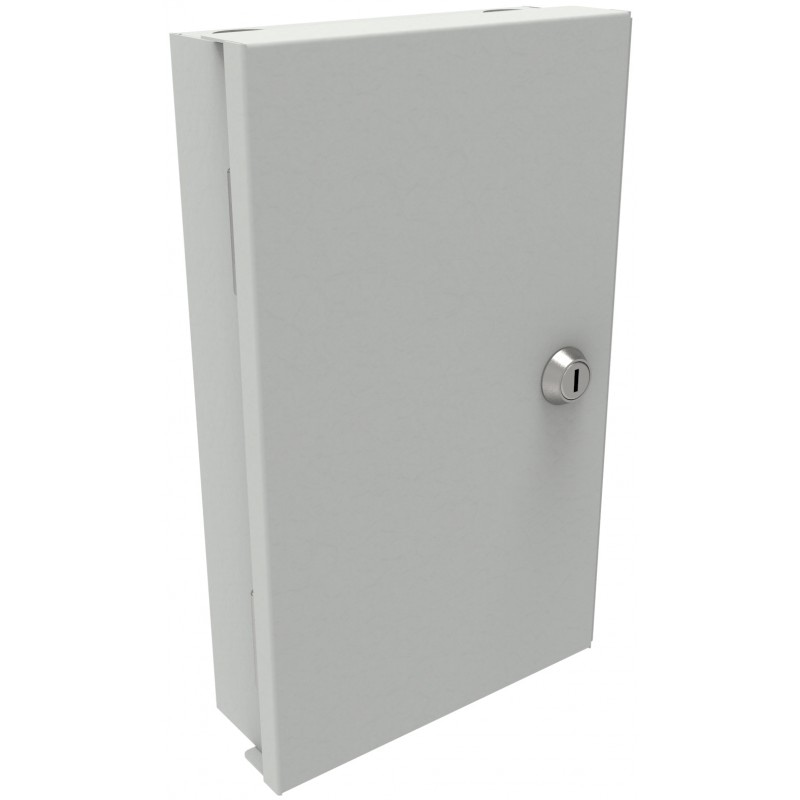

FIBERM Przełącznica Dostępowa PD-16/27/6 FTTH 12x SC Simplex

FIBERM Access Terminal Box PD-16/27/6 FTTH 12x SC Simplex

Purpose

The FIBERM PD-16/27/6 FTTH 12x SC Simplex Access Terminal Box is a reliable and robust solution designed for building FTTH (Fiber to the Home) fiber optic networks in multi-storey buildings. Its construction allows for efficient fiber optic infrastructure management, providing durability and protection for the installation.

Application and Installation

This device is intended for wall-mounted installation on individual floors of a building. It provides a safe termination point for fiber optic cables coming from the aggregation point and vertical cables running to individual apartments or commercial units.

The terminal box also supports the installation of splitters in a Steel Box housing, allowing effective signal distribution and management in compliance with FTTH network requirements.

Materials and Construction

The enclosure is made from high-quality Magnelis-coated steel (1 mm thick), ensuring excellent resistance to corrosion and mechanical damage. The surface is also powder-coated in light grey (RAL 7035), enhancing resistance to environmental factors and offering an aesthetically pleasing appearance.

Safety and Protection

The box complies with the IP45 protection rating, ensuring increased resistance to dust and water, making it suitable for demanding environmental conditions. Additional protection is provided by a 3-latch cylinder lock with key code 827, preventing unauthorized access.

Functionality and Installation Flexibility

• 5 cable entries with cable glands provide convenient access and fiber organization.
• Adjustable and removable patch panel accommodates 12 SC/APC Simplex adapters, offering high flexibility in connection configuration.

Included Accessories The product comes with a complete set of accessories to facilitate installation and cable management: 3x rubber grommets with membrane (for cables up to Ø20.5 mm) 1x rubber grommet with membrane (for cables up to Ø11 mm) 1x PG 13.5 cable gland 1x self-adhesive snap-on cable holder for internal cable routing

Technical Specifications

• Application: FTTH network deployment in multi-storey buildings
• Mounting: Wall-mounted, on each building floor
• Material: 1 mm Magnelis steel, powder-coated (RAL 7035)
• Protection Rating: IP45
• Locking Mechanism: 3-latch cylinder lock (key code 827)
• Cable Entries: 5 entries with cable grommets
• Patch Panel: Adjustable/removable for 12 SC/APC Simplex adapters
• Splitter Support: Compatible with Steel Box splitter housing
• Included Accessories

  • 3x Ø20.5 mm grommets
  • 1x Ø11 mm grommet
  • 1x PG13.5 gland
  • 1x adhesive snap holder

The FIBERM PD-16/27/6 FTTH terminal box is a solid and functional solution for organizing fiber optic networks, providing safety and ease of installation.

The FIBERM PD-16/27/6 FTTH 12x SC Simplex access terminal box is an ideal solution for building modern fiber optic networks in multi-storey buildings. Its robust construction, high-quality materials, and wide range of features make it a reliable product resistant to operating conditions. It ensures safety, installation convenience, and efficient fiber network management.
