FIBERM Mufoprzełącznica FTTX MDU C16 port uncut

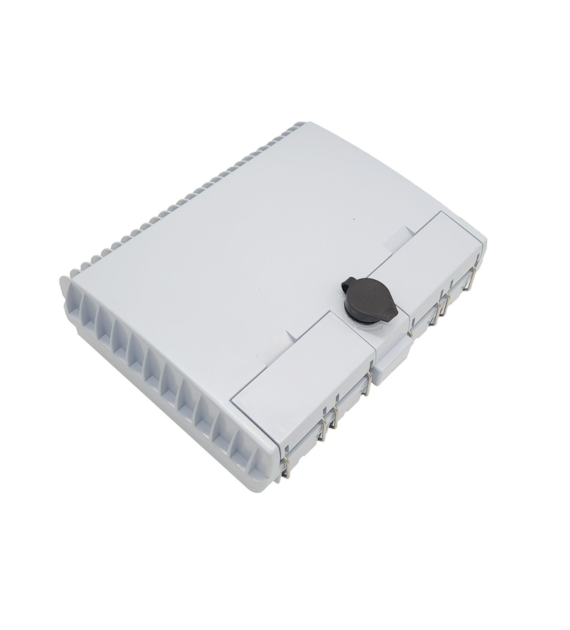

FIBERM FTTX MDU C16 Port Uncut Fiber Optic Splice Closure

FIBERM FTTX MDU C16 is a compact fiber optic splice closure designed for wall-mounted and pole-mounted installations. Equipped with 2 backbone cable entries and 12 subscriber cable outputs, it provides effective protection, organization, and management of fiber optic strands in both outdoor and indoor installations. The design allows for mounting 12 SC simplex / LC duplex adapters and 12/24 splices, thanks to the integrated, foldable hinged tray.

The housing is made of high-quality PC+ABS composite, resistant to UV radiation, water, dust, moisture, and chemical exposure. The IP65 protection rating ensures reliability even in harsh environmental conditions – for aerial, duct, and underground installations. All metal elements are made of corrosion-resistant materials.

A new feature in the design is the oval port, which can be mounted independently, allowing customization of the closure to specific installation needs.

Product Features: 17/18 input/output ports (2 backbone + 12 subscriber + oval port) Capability to mount 12 SC simplex / LC duplex adapters Integrated splice tray (12/24 splices) on hinges PC+ABS housing – resistant to UV, chemicals, and extreme temperatures Wide temperature range: from -40°C to +60°C Protection rating: IP65 Easy access to the interior with a convenient locking system Dual backbone entries and removable rubber sealing grommets for subscriber cables

Technical Data:

• Dimensions: 260 × 210 × 75 mm

• Color: black or white

• Maximum backbone cable diameter: 18 mm

• Subscriber grommet hole diameter: 2 mm (without grommet: 12 mm)

• Weight: 1 kg

Wyposażenie:

• 12 splice protectors

• 12 rubber sealing grommets for subscriber cables

• Cable ties

• Protective tube for fiber organization

• Mounting accessories for wall installation

• Key for locking the door

• Insulation tape

Applications:

• Indoor installations

• Outdoor installations (aerial, duct, underground)
