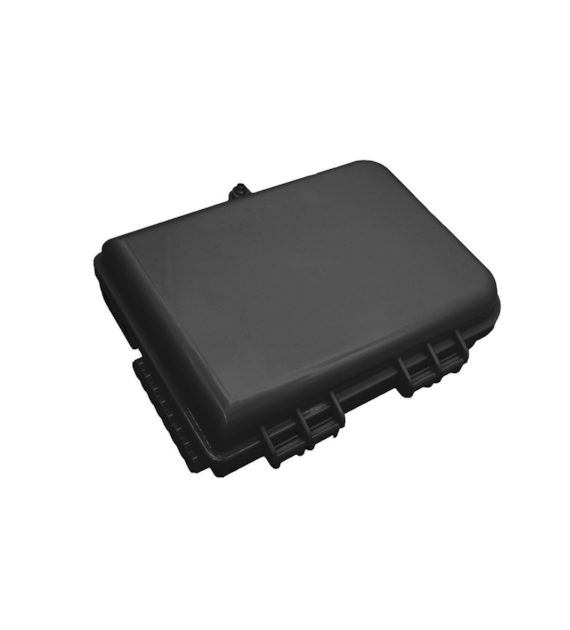

FIBERM MDU Fiber Optic Splice Box B16 port uncut black

FTTX MDU B16 (2xPG/uncut port) is a box-type fiber optic splice enclosure equipped with 17/18 inlet/outlet ports. It is designed for protecting fiber optic cable splices and branching applications. The enclosure is made of high-quality polycarbonate (PC) material, characterized by its resistance to UV radiation, wide temperature range (-40°C to +60°C), and chemical substances, making it suitable for aerial, duct, and underground installations. It is engineered for easy and seamless installation, providing a reliable fiber optic management system. All metal components of the enclosure are made of corrosion-resistant materials. A new feature is the oval port included in the kit for self-assembly, allowing the enclosure to be adapted to changing needs.

Specifications:

Number of inlet/outlet ports and maximum diameter:

• 16x Φ11mm + 2x Φ20mm (PG) / 1x Φ20mm (oval)

Maximum number of adapters for installation:

• 16 + 2 (SC Simplex / LC Duplex)

Maximum number of splices in the enclosure:

• 24 (when using double-layer splice protectors)

Dimensions:

• 300mm x 240mm x 105mm

The Tracom FTTX MDU B16 enclosure kit includes:

• Integrated fiber optic splice tray for 24 splices
• Integrated brackets for fiber optic adapters
• Key
• Screws
• PG-type cable glands
• Oval port for self-assembly
• Splice protectors
• Protective tube for fiber distribution
