FIBERM FDB0104G Muff Switch 1 IN

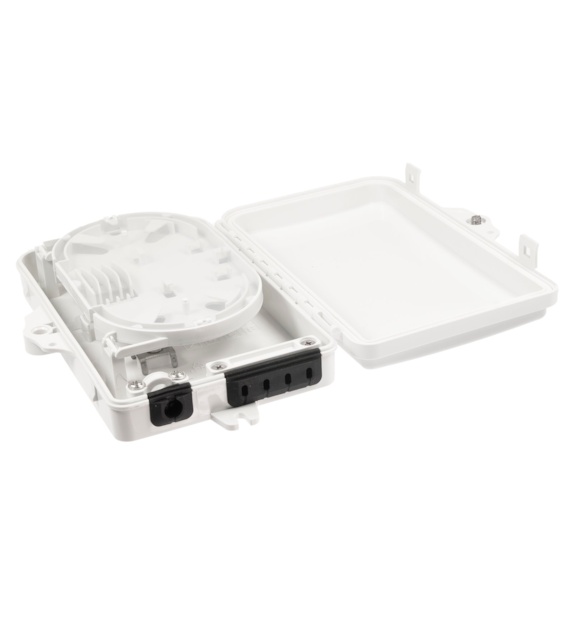

The FDB0104G 1 IN, 4 OUT fiber optic splice box by FIBERM is equipped with one input port for the trunk cable and four output ports. All inputs are protected by rubber plugs. The splice box stands out with its compact size while offering a functional design. Inside, there is a hinged tray, with the upper part designated for splicing. Below the tray, there is space available for storing additional cable. The splice holders have a curved shape, allowing for a more secure attachment of the sleeves in the designated position. The splice box comes with a frame for four SC Simplex or LC Duplex adapters, which are non-removable.

The offered product is intended for wall mounting, and plugs are included in the set.

Input port diameter: 10 mm
Output port dimensions: 2x3 mm

Dimensions:

Height: 18.6 cm
Width: 11.6 cm
Depth: 4 cm

Protection level: IP65

Product features:

• Housing made of high-quality synthetic material
• Resistance to UV radiation
• Wide range of temperature resistance (-40°C to +60°C)
• IP65 protection level
