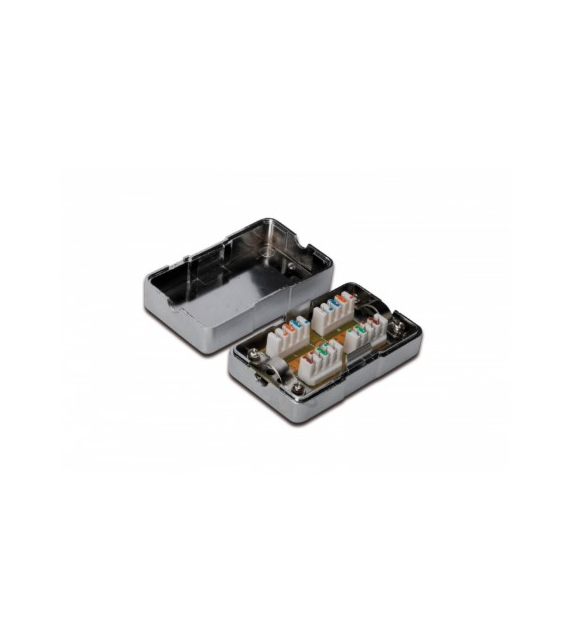

DIGITUS moduł do łączenia kabli LSA cat5e ekran DN-93902

DIGITUS® Connection Module for Shielded Twisted-Pair Cables, CAT 5e

The universal DIGITUS® connection module is a reliable solution for connecting or extending twisted-pair cables in both modern and existing network installations. Featuring LSA insulation displacement connectors, it enables fast, durable and secure connections using a standard punch-down tool. The module is ideal for upgrading IT infrastructure, replacing damaged cable sections or extending connections without having to replace the entire cabling system.

Product advantages:

• Simple and reliable cable connections thanks to LSA terminals with colour coding compliant with EIA/TIA 568 A and B.

• Category 5e compatibility, supporting data transmission up to 100 MHz, including 10/100Base-T and 1GBase-T.

• High-quality materials – a housing made of flame-retardant ABS UL 94V-0 plastic, gold-plated contacts and shielded connections ensure durability and safety.

• Versatile installation options – the module is suitable for flush mounting, surface mounting and installation in dado trunking.

• Cable strain relief – integrated cable ties stabilise the wires and protect them against damage.

Technical specifications:

• Transmission range: up to 100 MHz, 10/100Base-T, 1GBase-T

• Standards: ISO/IEC 11801 2nd edition, EN 50173-1, EIA/TIA 568-C

• Wire diameter: AWG 26/1 – 22/1

• Housing material: ABS UL-94V-0

• RJ45 socket contacts: nickel-plated phosphor bronze, 0.5 μ gold plating

• LSA insulation displacement terminal: Krone LSA+, UL 94V-0, tin-plated phosphor bronze

• Operating temperature: -20°C to +70°C

• Insulation resistance: > 500 MΩ

• Contact resistance: < 20 mΩ

• Withstand voltage: 1000 V DC (contact/contact), 1500 V DC (contact/ground)

Applications:

• Connecting two twisted-pair cables, including shielded cables

• Extending existing cable sections without compromising transmission quality

• Replacing damaged cables in network installations

The DIGITUS® connection module is a functional, safe and convenient solution for any network installation, ensuring fast cable connections while maintaining full signal integrity.
