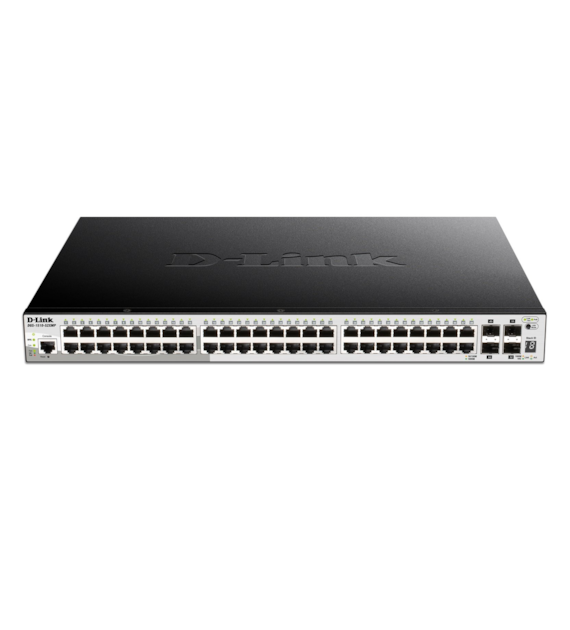

D-LINK DGS-1510-52XMP Switch Zarządzalny 48 x 10/100/1000 PoE 4 x SFP+

Port Standards & Functions IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation
Number of Ports 48 x 10/100/1000 Mbps PoE
capable, 4 x 10G SFP+
Network Cables UTP Cat. 5, Cat. 5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed
Media Interface Exchange Auto or configurable MDI/MDIX

Wydajność
Switching Capacity 176Gbps
Transmission Method Store-and-forward
MAC Address Table Up to 16,384 entries per device
MAC Address Update Up to 512 static MAC entries, Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate 130.95Mpps
Packet Buffer Memory 3MB per device
MTBF 303,027 Hours

PoE
PoE Standard IEEE 802.3af, 802.3at
PoE Capable Ports Ports 1 to 48: Up to 30 W
PoE Power Budget Max. 370 W (740 W with DPS-700 RPS redundant power supply)

Wygląd
Maximum Power Consumption 486.9 W (PoE on)
Standby Power Consumption 40.1 W
Smart Fan Quantity 4 x smart fans
Acoustics 55.4 dB(A)
Heat Dissipation 1660.329 BTU/hr
Operation Temperature 5 to 50 °C (23 to 122 °F)
Storage Temperature -20 to 70 °C (-4 to 158 °F)
Dimensions 440 x 308 x 44 mm
Weight 5.41 kg
Diagnostic LEDs Power/Stacking ID/Fan Error/PoE Push Button (per device), Link/Activity/Speed/PoE Mode (per 10/100/1000 Mbps port), Link/Activity/Speed (per SFP port), Link/Activity/Speed (per 10G SFP+ port)
Certifications CE, FCC, C-Tick, VCCI, BSMI
