ZTT-DUCT-48J-2

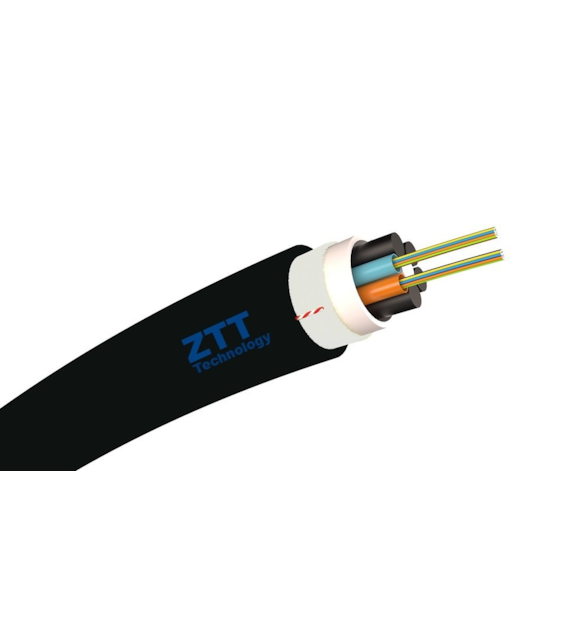

The ZTT 48J DUCT Anti-Rodent optical fiber cable is a dielectric multi-tube cable designed for installation in cable ducts in areas susceptible to rodent attacks. The cable is reinforced with a thick glass fiber braid, providing effective protection against rodents, along with a central Fiber Reinforced Polymer (FRP) rod. Two ripcords have been added to facilitate the removal of the external cable jacket. Inside the tube with optical fibers, a hydrophobic gel is placed to protect against moisture and vibrations. The single-mode fibers used are compliant with the G.652D standard, known for its reduced sensitivity to hydroxyl ions (Zero Water Peak). The outer jacket is made of high-density polyethylene (HDPE) in black, providing resistance to chemicals and substances found in telecommunications ducts. The optical fibers are protected against moisture using water-absorbing fibers and tape.

Rodent protection features include:

• Increased amount of glass fiber braid
• Double-layered, thickened outer jacket

Specifications:

• Fiber type: Single-mode G.652D
• Number of fibers: 48
• Number of tubes: 4
• Number of fibers per tube: 12
• Number of fillers: 2
• Outer diameter: 9 mm
• Minimum bending radius: 90 mm
• Outer jacket: HDPE - black
• Weight: 73 kg/km
• Operating temperature: from -40°C to 70°C
• Maximum tensile strength: 2.7 kN
• Crush resistance: 1.5 kN/10 cm

Applications:

• Primary and secondary telecommunications ducts
• Areas particularly vulnerable to rodent attacks
• Cable ducts
• Outdoor installations on building structures (UV resistance)

Compliance with standards:

• IEC 60793-1
• IEC 60793-2
• IEC 60794-3-10
