ZTT-DUCT-72J-1

Prices

Net retail price
4,63 PLN /szt.

Gross retail price
5,69 PLN /szt.
This language version of the website is still under construction. If you want to know more, please contact us.
Vat
23%
Zapłać 30 dni później z   Dowiedz się więcej
Data
Symbol
ZTT-DUCT-72J-1,2kN
Barcode
0000007674
Weight
0.04kg
Basic unit
szt.
Inventory status

Description

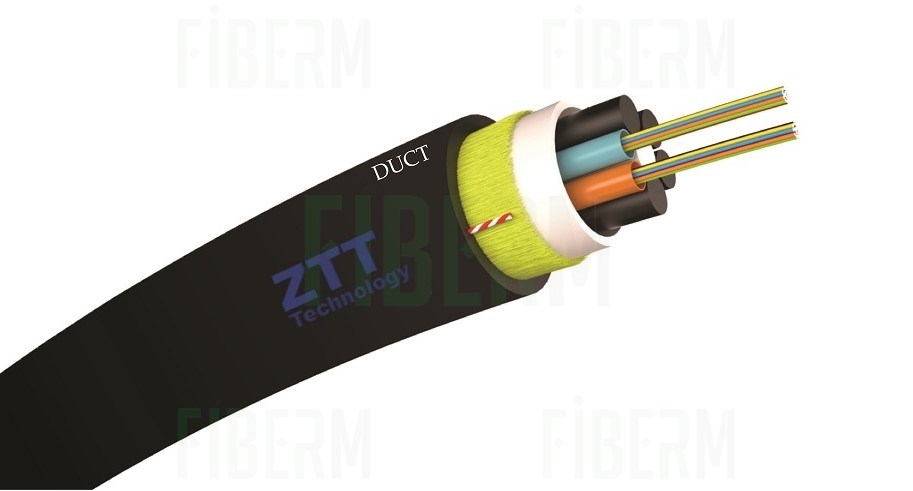

The ZTT 72J optical fiber cable is a dielectric cable with a multi-tube construction (12 fibers per tube), designed for installation in telecommunication ducts. It is reinforced with aramid fibers and a central FRP (Fiber Reinforced Polymer) rod. Additionally, to facilitate stripping of the cable's outer sheath, a ripcord is incorporated. Inside the fiber optic tube, there is a thixotropic gel that protects the fibers from moisture and vibrations. Single-mode fibers conforming to the G.652D standard are used, featuring reduced susceptibility to the -OH ions (Zero Water Peak). The outer sheath is made of high-density polyethylene (HDPE, black), exhibiting high resistance to chemical agents and substances present in telecommunication ducts.

The Super Saver cable boasts a small diameter and high tensile strength.

Specifications:

  • Fiber type: Single-mode
  • Fiber standard: G.652D
  • Number of fibers: 72
  • Number of tubes: 6
  • Number of fibers per tube: 12
  • Filler count: 0
  • Outer cable diameter: 6.8 mm
  • Minimum bending radius: 68 mm
  • Outer sheath: HDPE - black
  • Weight: 40 kg/km
  • Operating temperature range: from -30°C to 70°C
  • Maximum tensile strength: 1.2 kN
  • Crush resistance: 700 N/10 cm

Applications:

  • Primary and secondary telecommunication ducts
  • Distribution networks
  • Campus networks
