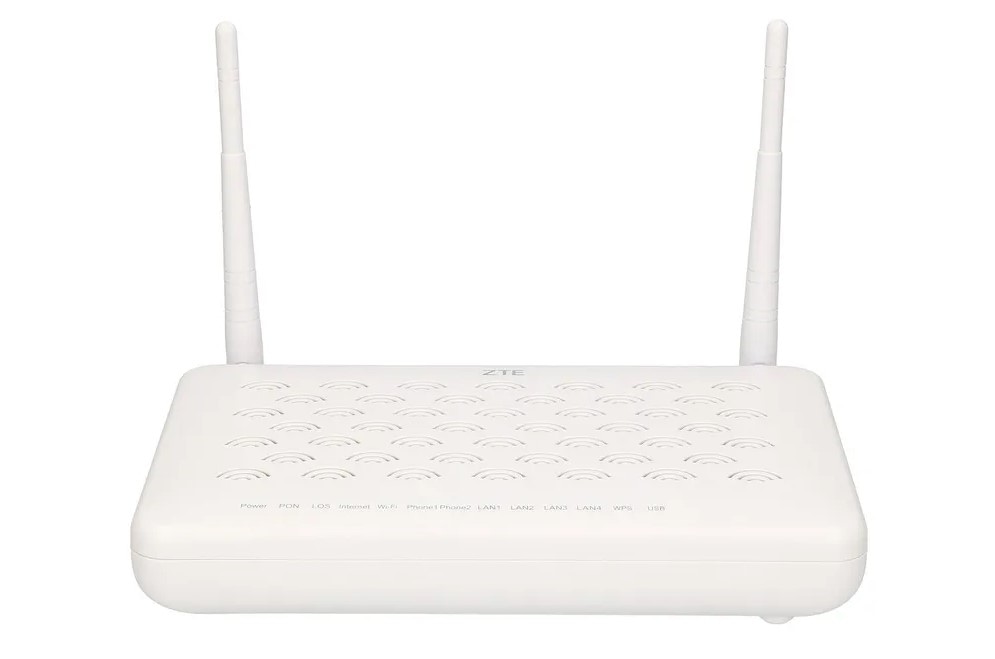

ZTE ZXHN F660 v5.2 CE GPON ONT 4x GE, 2x POTS, 1x USB, WiFi

The ZTE F660 V5.2 is an optical GPON/ONT terminal designed for GPON networks, equipped with 4 GE ports, 2 VoIP ports, WiFi, and 1 USB port. The device originates from the official European channel and holds CE and ROHS certifications.

The ZXHN F660 is a GPON optical terminal tailored for FTTH scenarios, offering L3 functionality to empower subscribers to build an intelligent home network. It provides convenient services such as internet access, voice calls (VoIP), internet television (IPTV), and high-speed internet connectivity.

The latest version of ZXHN F660, available in the offering, features 4 Gigabit ports and enhanced WiFi capabilities, making it an advanced GPON device. The ZTE F660 offers 4 GE ports, 2 VoIP ports, WiFi, USB, and supports various services, including internet access, VoIP, IPTV, and WLAN.

Technical Specifications:

• 1 GPON interface (SC/APC)
• 4 10/100/1000Base-T Ethernet interfaces
• 2 FXS interfaces (VoIP)
• 1 USB port
• WiFi (b/g/n)

Device Features:

• GPON: 8 T-CONTs, 32 GEM Ports
• VLAN: 802.1Q, 802.1P, 802.1ad
• MAC address table: 1k
• DHCP server/client, DNS client/relay, NAT
• IPv6: Dual Stack, DS-Lite
• VoIP: SIP/H.248, G.711/G.729, T.30/T.38
• WiFi: 4 SSIDs, 2x2 MIMO, WPS
• WiFi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise
• Multicast: IGMP v1/v2 Snooping/Proxy, MLD v1 Snooping, Multicast group per user port: 256
• QoS: Service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
• Management: Local web management, OMCI, TR069
• USB: DLNA DMS, USB backup, 3G dongle support

Physical Parameters:

• Power consumption: <10W
• Dimensions: 220mm(W) x 44mm(H) x 160mm(D)
• Operating temperature: 0oC ~ 40oC
• Operating humidity: 5% ~ 95%
• Weight: ~ 380g
• Power supply: 12 V DC
• Mounting: Desk, wall-mounted
