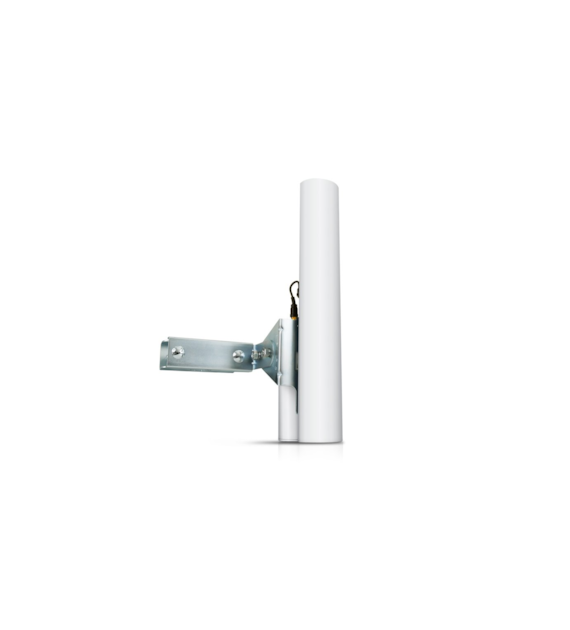

UBIQUITI AIRMAX AM-5G16-120 ANTENNA 5GHZ 120° 16 DBI DUAL SECTOR

Prices

Net retail price
265,56 PLN /szt.

Gross retail price
326,64 PLN /szt.
This language version of the website is still under construction. If you want to know more, please contact us.
Vat
23%
Data
Symbol
AM-5G16-120
Barcode
0000000208
Basic unit
szt.
Manufacturer name
Ubiquiti
Inventory status

Description

AirMax dual-sector antennas are designed to work with AirMax devices using the 802.11n standard. The application of the latest patented technical solutions has resulted in excellent user parameters such as high energy gain, favorable beam shape, and a high level of separation between differently polarized beams. The antennas are equipped with dedicated mounts for "Rocket M" devices and two high-quality waterproof antenna connectors. Together with the Rocket M, they form a high-class 2x2 MIMO "Point to Multipoint" base station.

The AirMax sector antennas are specifically designed to maximize the ease of mounting with Rocket M devices. The installation of all AirMax system components does not require any additional elements or tools - the mounting elements of the Rocket M bridges correspond to the dedicated mounts used with the Rocket antennas.

Specifications:

  • Frequency: 5150MHz - 5900MHz
  • Energy Gain: 15.0 - 16.0 dBi
  • Polarization: Dual Linear
  • Separation between polarized beams: 22dB min
  • Max VSWR: 1.5:1
  • Beamwidth in H-plane: 137°
  • Beamwidth in V-plane: 118°
  • Beamwidth in perpendicular plane:
  • Electrical downtilt:
  • ETSI Standards Compliance: EN 302 326 DN2
  • Dimensions: 367x63x41 mm
  • Weight: 1.1 kg
  • Max wind speed tolerance: 210 km/h
