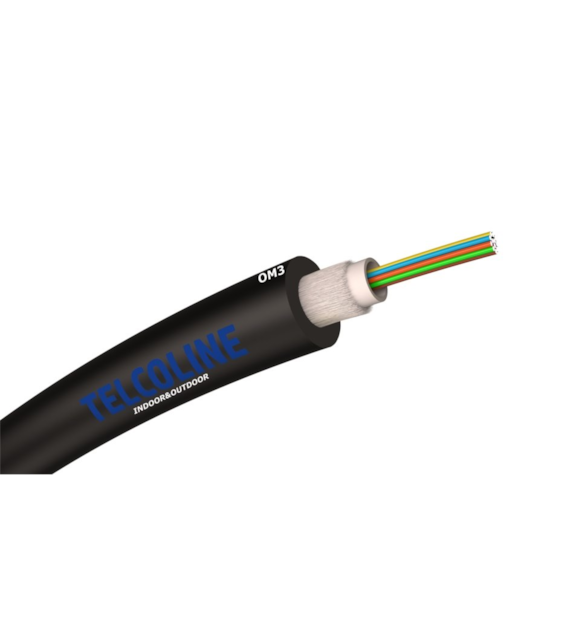

TELCOLINE Multimode Fiber Optic Cable 24G OM3

Prices

Net retail price
9,10 PLN /szt.

Gross retail price
11,19 PLN /szt.
This language version of the website is still under construction. If you want to know more, please contact us.
Vat
23%
Zapłać 30 dni później z   Dowiedz się więcej
Data
Symbol
TELCOLINE-MULTIMODE-OM3-24G
Barcode
0000001887
Basic unit
szt.
Manufacturer name
Telcoline
Inventory status

Description

TELCOLINE MultiMode 24G OM3 optical fiber cable is a versatile cable reinforced with glass fibers. The cable can be installed in ducts, cable conduits, ducts, or directly in the ground, as long as it is not directly exposed to mechanical damage. The outer sheath is made of LSOH (Low Smoke Zero Halogen) material, which does not emit harmful gases and does not sustain flames in the event of a fire. It is also resistant to UV radiation and low and high temperatures. The cable utilizes OM3 50/125 μm multimode fibers, ensuring transmission speeds of 10 Gb/s over a distance of 500 m and up to 100 Gb/s over a distance of 150 m. The cable is completely dielectric and longitudinally waterproof. The optical fibers are located in a central tube.

Specifications:

  • Fiber type: Multimode
  • Fiber type: OM3 50/125 μm
  • Number of fibers: 24
  • Cable diameter: 8.7 mm
  • Minimum bending radius of the cable: 87 mm
  • Max. installation force: 100N
  • Crush resistance: 1kN/dm
  • Reinforcing elements: Glass fibers
  • Sheath: LSOH, aqua
  • Weight: 66 kg/km

Applications:

  • Indoor installations
  • Sewer systems
  • Local telecommunication networks
  • Computer networks
  • CATV
  • FTTx


Specyfikacja
Warranty:

We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
