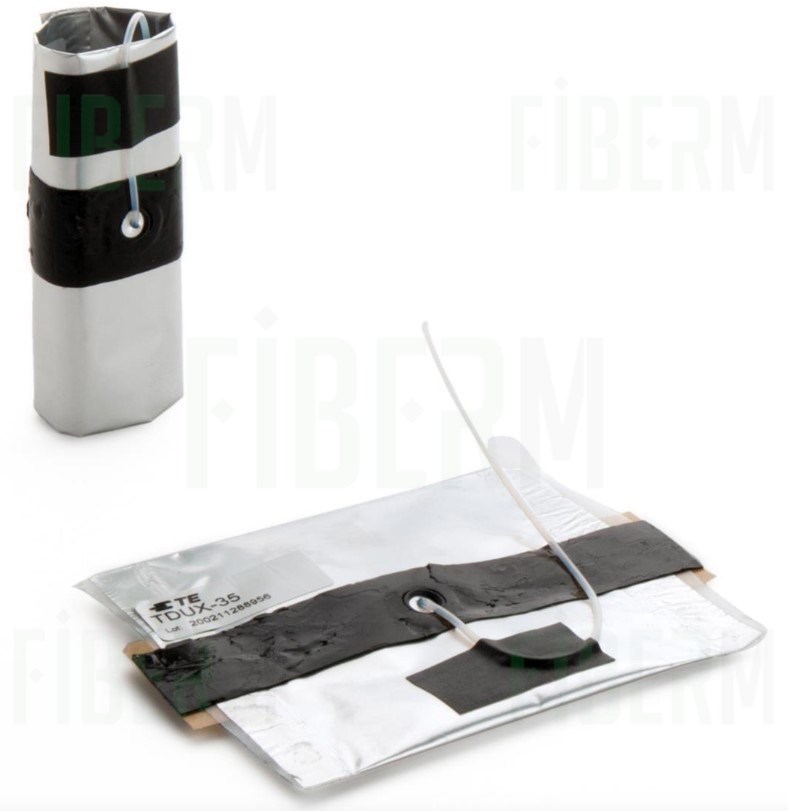

TDUX 35 Sealing for Ducts with Diameter 25-32mm

TDUX is a unique, wrapped cable duct sealing system filled with gas under internal pressure. It effectively seals cable ducts, preventing water from entering manholes and cable chambers. TDUX can be installed in sewage systems and conduits made of plastics, concrete, or steel. It seals sewage pipes containing cables with polyethylene or lead coatings.

Features:

• Quick and easy installation, even in areas with limited access.
• Universal and reliable wrapped sealing system.
• Proper sealing for pipes or cables with an elliptical shape.
• Ability to seal cables of different diameters using the same size seal.
• Can be installed in empty pipes or those containing one or more cables.
• Can be installed even when water spills from the pipe.
• Water and gas tightness up to 50 kPa pressure.
• Environmentally friendly and non-toxic product. Resistant to chemicals and bacteria.
• Quick and easy disassembly.
• Wide range of sizes, enabling sealing of various types of cable ducts and cables.
• Application range: TDUX is used to seal empty pipes and those containing 1 or 2 cables.

Technical specifications:

• Range of internal diameter of ducts for two cable diameters: min.: 25; max.: 35
• Range of single cable outer diameter or sum: in ducts with min. diameter: 0-12; in ducts with max. diameter: 0-25
• Additional TDUX-CL clips are required to seal ducts containing more than 2 cables. For further information, please contact your local sales engineer.
• TDUX seals can be filled using various tools, allowing the TDUX sleeve to achieve an internal pressure of 3.0 ± 0.2 bar.
