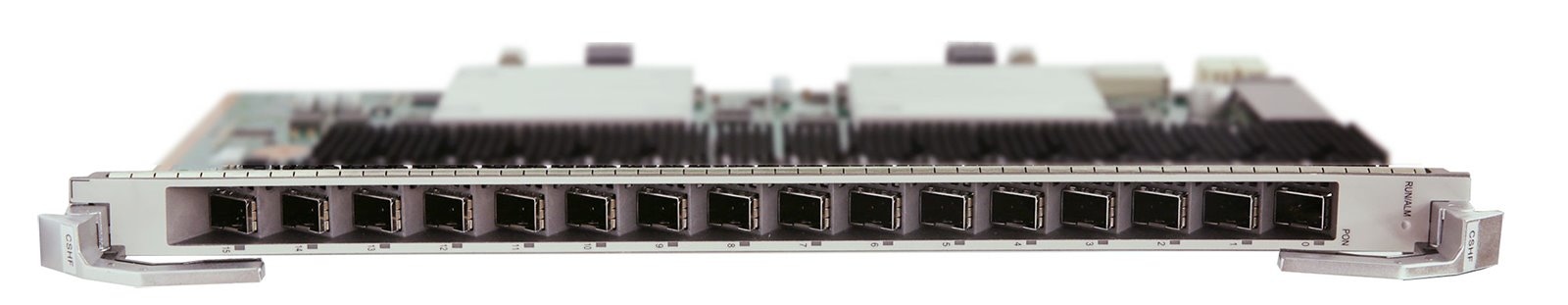

Huawei H907CGHF XGS-PON/GPON Combo Board 16x C+ Module

Categories: GPON i EPON \ Cards for OLT k \ OLT Cards GPON i EPON \ XGS-PON

Prices

Net retail price

19 125,00 PLN /szt.

Gross retail price

23 523,75 PLN /szt.

This language version of the website is still under construction. If you want to know more, please contact us.

Vat

23%

Zapłać 30 dni później z

Dowiedz się więcej

Data

Symbol

HUAWEI-H906CSHF-16xC+

Barcode

0000008543

Weight

2.3kg

Basic unit

szt.

Inventory status

Huawei H907CGHF XGS-PON/GPON Combo Board 16x C+ Module

Description

Specyfikacja

Connector:

SC/UPC

Dwukierunkowe FEC:

Tak

Format:

SFP / SFP+

Format portów:

SFP / SFP+

Funkcje oszczędzania energii:

Tak

Grupy CAR:

Tak

HQoS:

Tak

Kompatybilne włókno:

singlemode

Kompatybilność OLT:

seria MA5800

Liczba portów:

Liczba service flow na płytę:

16352

Maksymalna liczba adresów MAC:

131072

Maksymalny rozmiar ramki:

2052 B

Maksymalny rozmiar ramki z Jumbo Frames:

9216 B

Maximum power consumption:

99 W

Model:

Huawei H905CSHF

Ochrona typu B dual-homing:

Tak

Ochrona typu B single-homing:

Tak

Ochrona typu C dual-homing:

Tak

Ochrona typu C single-homing:

Tak

ONU-based / queue-based shaping:

Tak

PON ISSU:

Tak

Prędkość przekazywania płyty:

200 Gb/s

Product group:

GPON/EPON ONTs

Static power consumption:

51 W

Synchronizacja 1588v2:

Tak

Tryby pracy portów:

asymetryczny, symetryczny

Typ:

płyta Combo (GPON / XG-PON / XGS-PON)

Variable-length OMCI:

Tak

Wkładki w zestawie:

16 wkładek klasy C+

Wykrywanie i izolacja rogue ONU:

Tak

Wymiary (WxHxD):

339,20 × 23,30 × 257,90 mm
