FirstFiber OTDR 8000MAX-T2 Reflectometer (1310/1550/1625nm)

Categories: FirstFiber Fiber Optics \ Reflectometers and Splitters \ Reflectometers r \ OTDR

Prices

Net retail price

9 800,00 PLN /szt.

Gross retail price

12 054,00 PLN /szt.

This language version of the website is still under construction. If you want to know more, please contact us.

Vat

23%

Data

Symbol

FIRSTFIBER-8000MAX-T2

Barcode

0000000977

Weight

2.8kg

Basic unit

szt.

Manufacturer name

FirstFiber

Inventory status

Attachments

karta katalogowa

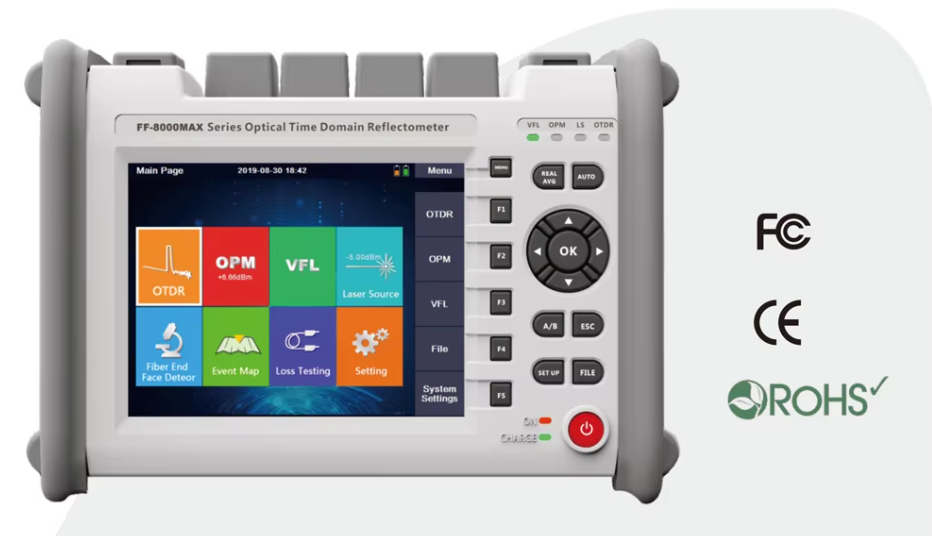

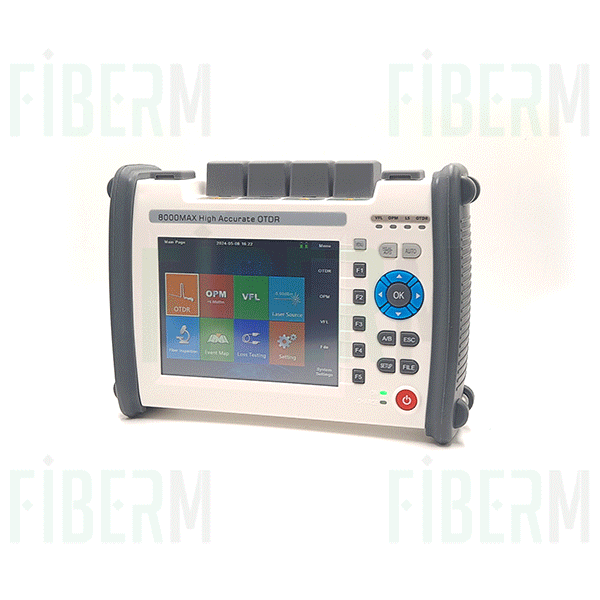

FirstFiber OTDR 8000MAX-T2 Reflectometer (1310/1550/1625nm)

Description

Reflektometr OTDR dedykowany do GPON. Możliwość robienia pomiarów na aktywnej sieci (fala 1625nm). Dotykowy ekran 5,6 cala TFT-LCD. Wbudowany VFL, miernik mocy OPM, źródło światła OLS i tester RJ45. Złącze FC/SC/ST.

Funkcje i cechy

wbudowany wizualny lokalizator uszkodzeń (VFL)
wbudowany miernik mocy (OPM)
wbudowane źródło światła (OLS)
LED Light
ekran TFT 5,6 cala, dotykowy LCD
interfejs USB do podłączenia do PC
oprogramowanie dla PC do drukowania raportów (SOR) i zapisu do PDF
złącze SC/FC/ST
OPM i OLS mogą pracować jednocześnie (do pomiaru insertion loss)
Event map
praca na akumulatorze do 8 godzin, ładowanie poniżej 3h
intuicyjny interfejs
wbudowana pamięć 16GB (pozwala zapisać 100 krzywych)
praca w temperaturze -10 do 50 stopni Celsjusza

Zawartość opakowania

OTDR,
FC Connector
SC Connector
ST Connector
User Manual
USB Disc OTDRviewer Software
Touch Pen
Cleaning Tool
Power Charging Adapter
Carrying Case
Certificate of Calibrate

Specyfikacja

Szerokość impulsu: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Zasięg: 100m, 500m,2km, 5km, 10km, 20km, 40km, 80km, 120km, 200km, 250km
Częstotliwość próbkowania: minimum 5cm
Czasy uśredniania: 10s, 15s, 30s, Real Time, Customized
Scale indication: X axis: 4~70m/div, Y axis: 0.09~5dB/div
Dokładność: ±(1m+measuring distance×3×10^-5+sampling resolution) ( excluding IOR uncertainty)
Loss Threshold: 0.01dB
Loss Resolution: 0.001dB
Distance Resolution: 0.01m
IOR Setting: 1.2000~1.5999, 0.0001 step
Jednostki: km, miles, kfeet
OTDR Trace Format: Telcordia universal, SOR, issue 2(SR-4731)

Specyfikacja

Article:

Paczkomat

Warranty:

12 months
