ZTE ZXHN F670L CE GPON ONT 4xGE

Kategorien: GPON i EPON \ GPON ONT i ONU ZTE g \ GPON ONT g \ GPON ZTE

Preise

Netto-Einzelhandelspreis

308,78 PLN /szt.

Bruttoeinzelhandelspreis

379,80 PLN /szt.

Zaloguj się, aby uzyskać dostęp do cennika hurtowego i informacji o dostępności produktów.
Jeśli nie posiadasz konta - zarejestruj się.

MwSt

23%

Grundinformationen

Symbol

ZTE-F670L

Strichcode

0000000916

Gewicht

0.5kg

Basiseinheit

szt.

Herstellername

ZTE

Stan produktu

Beschreibung

Der ZTE ZXHN F670L ist ein GPON-Abonnententerminal, eine Dual-Band-Gigabit-Premium-Triple-Play-AC1200-GPON-Gateway.

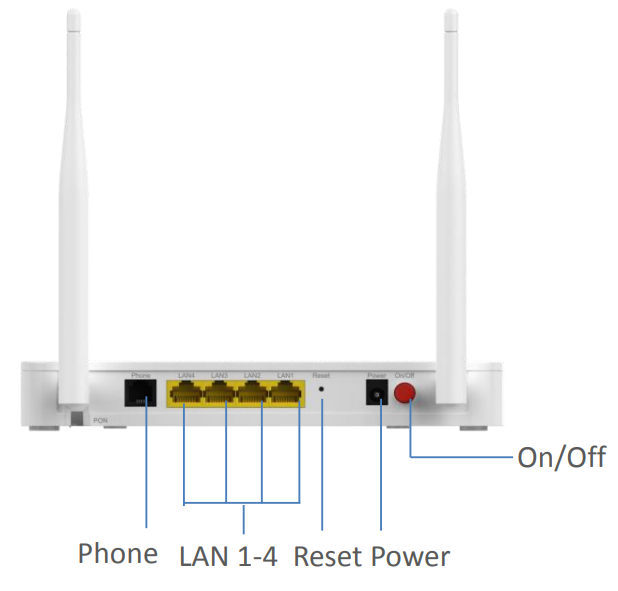

Der ZTE F670L ist mit 1x Gigabit-Ethernet-Port, 3x Fast-Ethernet-Ports, einem RJ11-Telefonport, einem USB-Port sowie Dual-Band-WLAN ausgestattet, das gleichzeitig im 2,4-GHz-2x2- und im 5-GHz-2x2-Band arbeitet. Je nach Kundenanforderungen können Antennen mit einer maximalen Verstärkung von 5 dBi die WLAN-Reichweite verbessern und die Leistung optimieren.

Hauptmerkmale:

1x SC/UPC-Anschluss für GPON
1x Gigabit-Ethernet-Port + 3x Fast-Ethernet-Ports
1x RJ-11-Port für VoIP
1x USB-Port
WiFi 2,4 GHz und 5 GHz AC1200
ZTE ZXHN F670L
PON-Schnittstelle:

1G/EPON-Port (EPON PX20+ und GPON Klasse B+)
Empfangsempfindlichkeit: ≤-28dBm
Optische Sendeleistung: 0 ~ +4dBm
Übertragungsentfernung: 20 km
Laserwellenlänge
Tx 1310nm
Rx 1490nm
Optische Schnittstelle
SC/UPC-Anschluss
LAN-Schnittstelle:

1x 10/100/1000 Mbps
3x 10/100 Mbit/s Autoadapter-Schnittstelle
Internet-Schnittstelle
WiFi-Schnittstelle:

IEEE802.11b/g/n-Kompatibilität
Arbeitsfrequenz: 2,400-2,4835 GHz
MIMO-Unterstützung, Geschwindigkeit bis zu 300 Mbps
2T2R, 2 externe Antennen 5 dBi
Unterstützung: Mehrere SSID
Kanal: 13
Modulationsart: DSSS, CCK und OFDM
Codierungsschema: BPSK, QPSK, 16QAM und 64QAM
CATV-Schnittstelle:

RF, Optische Leistung: +2 ~ 18 dBm
Optische Rückflussdämpfung: ≥45 dB
Empfangs-Laserwellenlänge: 1550 ± 10nm
RF-Frequenzbereich: 47 ~ 1000 MHz, RF-Ausgangsimpedanz: 75Ω
RF-Ausgangspegel: ≥82 dBuV (-7dBm optischer Eingang)
AGC-Bereich: +2 ~ 7dBm / -4 ~ 13dBm / -5 ~ 14dBm
MER: ≥32dB (-14dBm optischer Eingang), >35 (-10dBm)

Specyfikacja

Anzahl der GE-Anschlüsse:

Anzahl der POTS-Anschlüsse:

Artikel:

Paczkomat

Garantie:

12 miesięcy

Standard PON:

GPON

WiFi:

Jawohl

WiFi-Band:

2.4GHz, 5GHz
